Energy-efficient horizontal hot water boiler

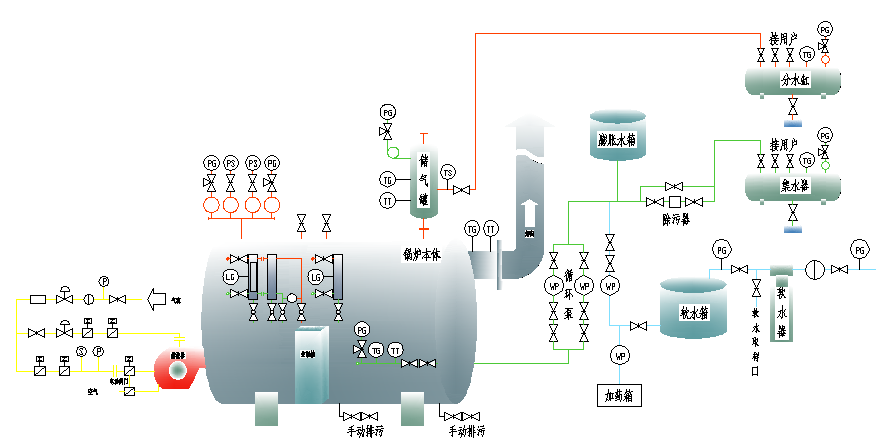

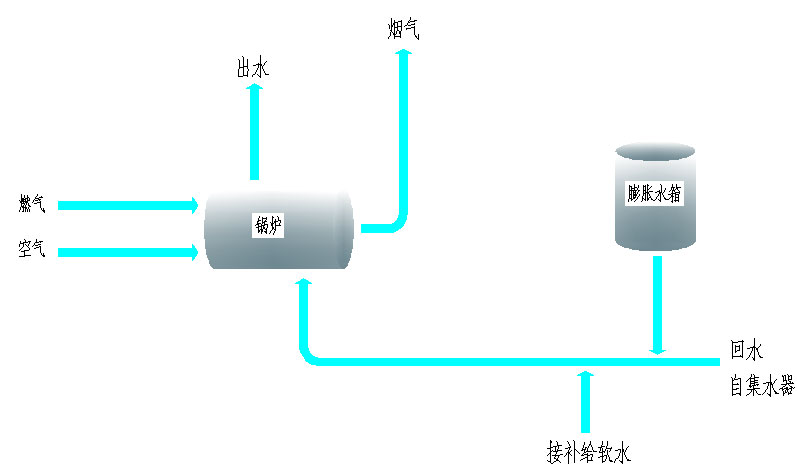

Steam and feed flow diagram

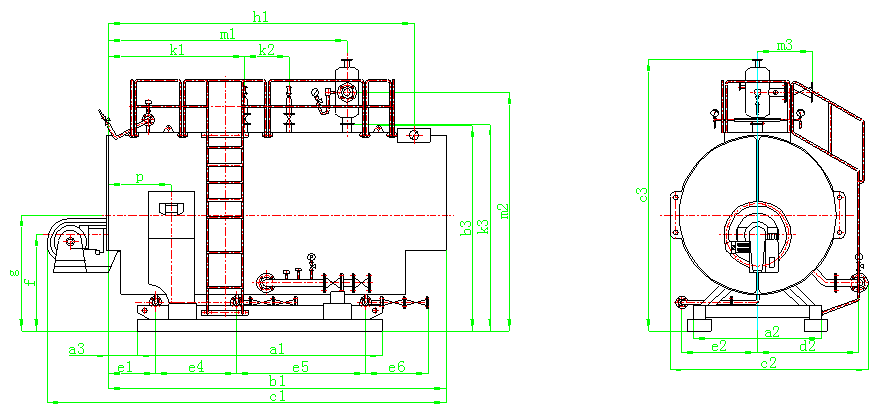

Size of S0.35-14MW hot water boiler

Length (mm)	Base			Transportation clearance			Max overall dimension			Water inlet			Burner center	Equipment center
Thermal power	a1	a2	a3	b1	b2	b3	c1	c2	c3	d1	d2	d3	f	g
0.35MW	2100	1100	250	3200	1370	1710	3430	1725	2335	2100	670	550	870	1000
0.7MW	2600	1300	0	3283	1605	1960	3813	2085	2716	2488	850	560	905	1110
1.05MW	3050	1300	0	3751	1735	2060	4291	2085	2816	3138	900	574	910	1160
1.4MW	2740	1400	85	3750	1935	2215	4236	2060	3085	2870	1020	600	1000	1250
2.1MW	3450	1600	425	4594	2145	2400	5308	2285	3340	3440	1050	650	1030	1350
2.8MW	3450	1700	525	4880	2395	2612	5960	2515	3595	3869	1237	640	1136	1460
4.2MW	3990	1850	525	5610	2550	2860	6950	2690	3949	4276	1295	660	1205	1580
5.6MW	4650	1900	625	6196	2850	3094	3094	3025	4290	5150	1500	742	1215	1690
7.0MW	5000	2000	625	6648	2940	3204	3204	3115	4400	5927	1450	475	1270	1750
8.4MW	5700	1950	525	6900	3090	3510	3510	3240	4980	5916	1595	890	1460	2010
10.5MW	5750	2500	525	7200	3525	3758	3758	3665	5170	6040	1650	625	1590	2100
14MW	7150

Length (mm)	Manual sewage draining exit						Relief valve connector			Water outlet			Chimney breast		Control cabinet
Thermal power	e1	e2	e3	e4	e5	e6	k1	k2	k3	m1	m2	m3	h1	h2	p
0.35MW	2100	650	310	—	—	540	2050	—	1820	1550	1985	470	2475	1700	850
0.7MW	2180	800	300	—	—	600	2150	—	2080	1650	2276	520	2550	1960	570
1.05MW	2630	800	300			600	1750		2195	2200	2376	520	3000	2060	570
1.4MW	2790	850	338	—	—	700	1750	—	2335	2350	2650	560	3220	2215	620
2.1MW	3600	900	360	—	—	700	1750	400	2415	2750	2870	750	4016	2400	1030
2.8MW	2100	950	348	1710	—	700	2190	400	2747	3090	3082	805	4245	2612	1140
4.2MW	2860	1050	366	1590	—	700	2450	500	2998	3650	3408	880	5005	2860	1190
5.6MW	3270	1150	346	1800	—	700	2950	500	3254	4100	3675	800	5575	3050	1700
7.0MW	1450	1180	350	2100	2050	700	2700	600	3364	4000	3784	800	6025	3150	1700
8.4MW	1950	1200	400	1950	1950	700	1690	600	3726	4300	4260	860	6350	3510	1940
10.5MW	740	1600	350	2200	3150	700	2900	650	3918	4700	4448	860	6640	3758	1850
14MW	2000	1800	330	2150	2450	700	3000	900	4370	5200	4850	860	7284	4165	2200
Note:The base elevation for 8.4MW,10.5MW and 14MW is 400mm.

※ Compact structure, attractive appearance.
※ Reasonable design of heating surface can effectively control resistance of smoke.
※ Appropriate control of exhaust gas temperature can ensure boiler efficiency.
※ Adopts unique detachable smoke box, thus it is easy for maintenance.
※ Special spring type explosion door and guarantee safety of boiler.
※ Adopts control system of programmable logic controller (PLC) and touch screen.
※ All-around online help, multilevel Chinese pop-up menu and breakdown maintenance manual.
※ All-around safety interlocking protection function can ensure the safe and efficient operation of boiler.
※ Sufficient PLC reserved port and modular expanding module can realize group control, remote control and building control.
